Lancaster Series - 80W

• Wattages
  • 80W
• Efficacy
  • 140lm/W
• Correlated Colour Index (CRI)
  • CRI: >70
  • CRI: >80
• MacAdam Ellipse (SDCM)
  • SDCM: <6
• IP Rating
  • IP66
• IK Rating
  • IK08
• Voltage
  • AC100-277V, 50/60Hz
• Light Source & Brand
  • LED: SMD 5050
• Driver
  • Driver: SOSEN

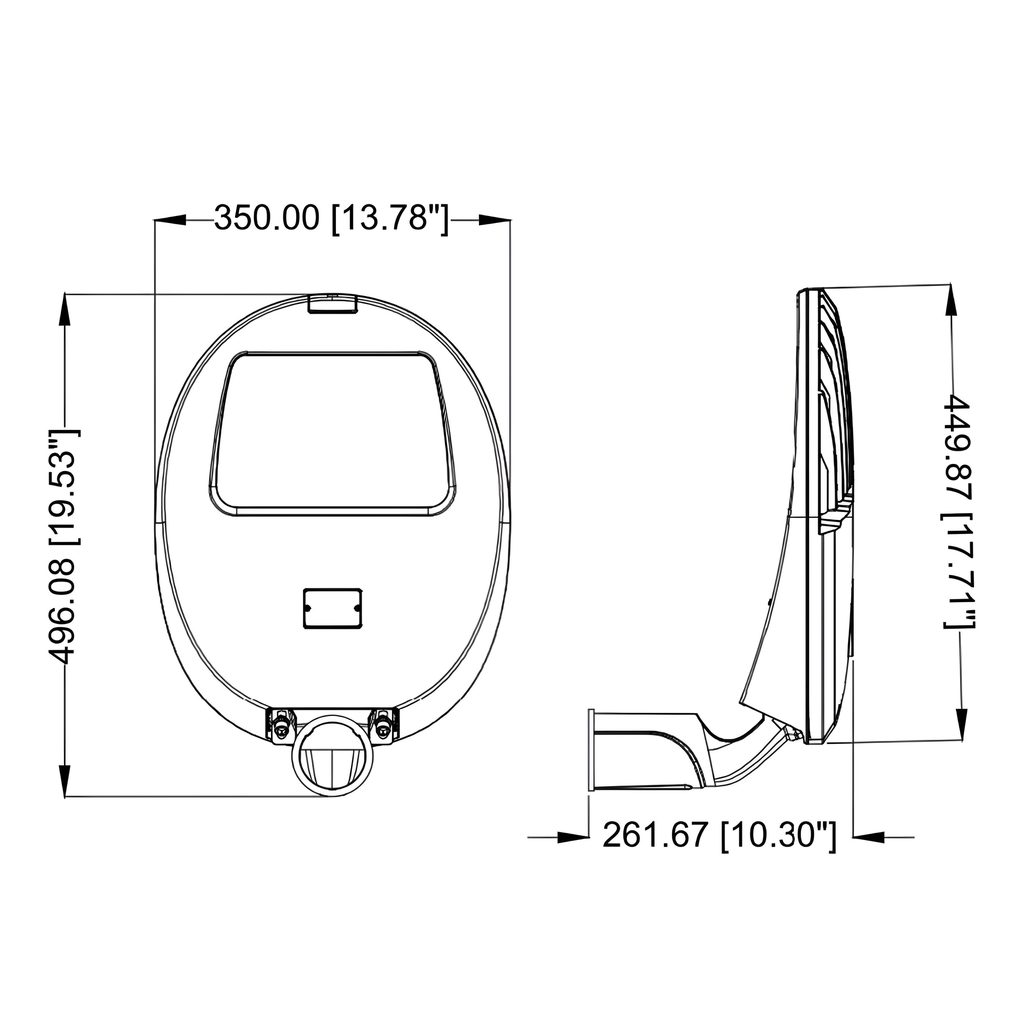

• Size - Length
  • Length: 616.66mmL
• Size - Width
  • Width: 350mmW
• Size - Height
  • Height: 141.09mmH
• Weight
  • Weight: 5.5kg
• Tilt
  • Tilt: ±15°
• Beam Angle
  • Beam Angle: 60°
  • Beam Angle: 90°
  • Beam Angle: Type II - 117° x 34°
  • Beam Angle: Type II-M - 155° x 105°
  • Beam Angle: Type III - 155° x 120°
• Dimming Options
  • Non-Dimmable
  • DALI Dimmable
• Material of Housing
  • Housing Material: Die-Cast ADC12 Aluminum
• Material of Optics
  • Optics Material: Polycarbonate Lens
• Operating Temperature
  • Operating Temperature: -40°C to+50°C
• Trim / Outer Colour
  • Trim/Outer: Black
  • Trim/Outer: Grey
  • Trim/Outer: Bronze
• Correlated Colour Temperature (CCT)
  • CCT: 3000K
  • CCT: 4000K
  • CCT: 5000K
  • CCT: 5700K
• Mounting Options
  • Pole Mounted
• Accessories
  • PhotoElectric Cell
  • 10kV Surge Protection Device
  • 20kV Surge Protection Device
  • Short Circuit Cap
  • NEMA 3pin Socket
• Lifetime
  • Reported L80 @ 85° >102,000 Hrs - As outlined within IESNA Standards, Projected Lifetime can be up to 6 x the reported lifetimes
