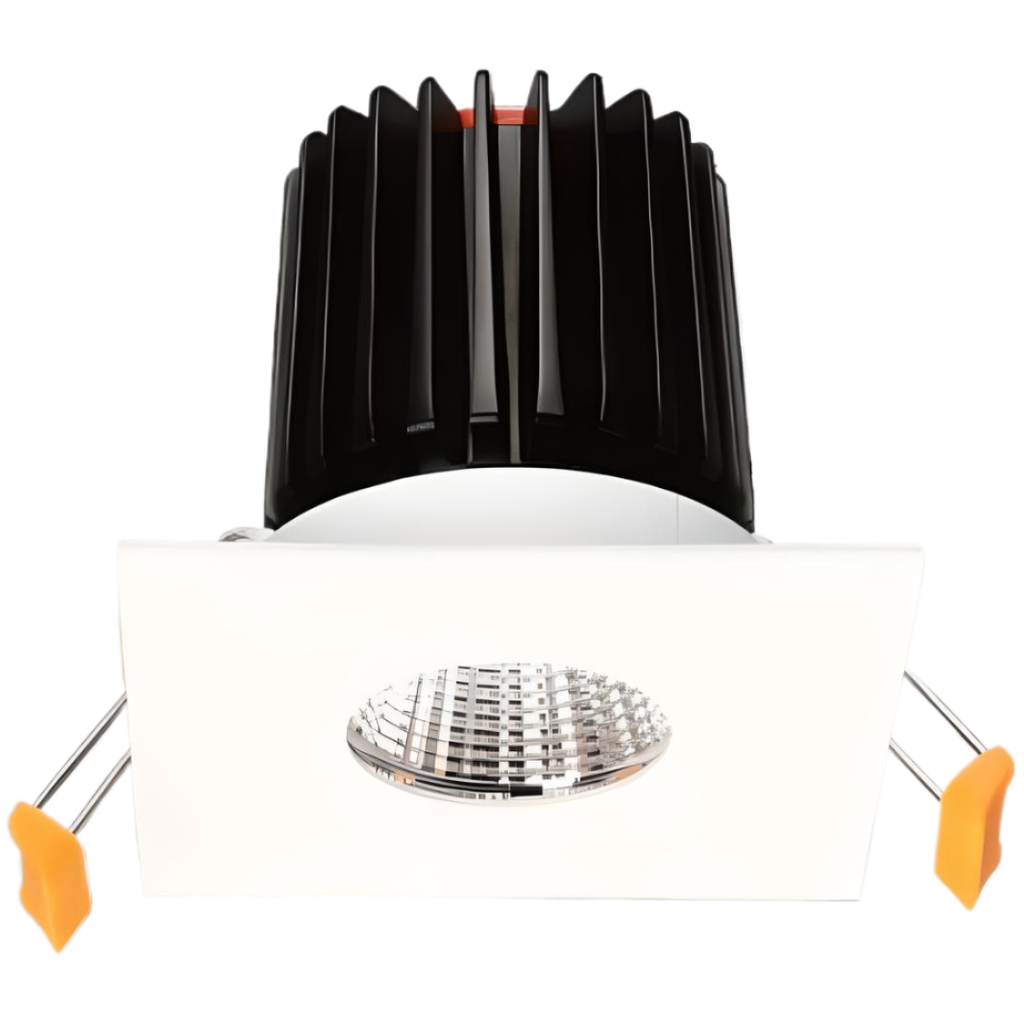

Switch Downlight Kit - SQ6

• Wattages
  • 3W
  • 5W
  • 7W
  • 9W
  • 13W
• Module
  • X2A
  • X2A-H
  • X3A
  • X3A-H
  • X15A
  • X15A-H
• Efficacy
  • 121lm/W
  • 122lm/W
  • 123lm/W
  • 124lm/W
  • 133lm/W
  • 136lm/W
  • 140lm/W
  • 166lm/W
• Correlated Colour Index (CRI)
  • CRI: >80
  • CRI: >90
  • CRI: >97
• MacAdam Ellipse (SDCM)
  • SDCM: <3
• IP Rating
  • IP20
  • IP44
  • IP54
  • IP65
• Voltage
  • AC200-240V, 50/60Hz
• Light Source & Brand
  • LED: Citizen COB
• Driver
  • Driver: Lifud
  • Driver: BOKE
  • Driver: AIDimming
• Size - Length
  • Length: 90mmL
• Size - Width
  • Width: 90mmW
• Size - Height
  • Height: 49mmH
  • Height: 72mmH
  • Height: 77mmH
• Cut Out Size - Length
  • Cut Out: 70mmL
• Cut Out Size - Width
  • Mounting Sleeve: 70mmW
• Weight
  • 0.161kg
  • 0.246kg
  • 0.371kg
• Beam Angle
  • Beam Angle: 15°
  • Beam Angle: 20°
  • Beam Angle: 24°
  • Beam Angle: 30°
  • Beam Angle: 38°
  • Beam Angle: 55°
  • Beam Angle: 60°
• Dimming Options
  • Non-Dimmable
  • Triac Dimmable
  • 0-10V Dimmable
  • DALI Dimmable
• Material of Housing
  • Housing Material: Aluminium
• Material of Optics
  • Optics Material: Aluminium & Glass
• Operating Temperature
  • Operating Temperature: -20°C to 45°C
• Trim / Outer Colour
  • Trim/Outer: White
  • Trim/Outer: Black
  • Trim/Outer: Custom Colour
• Reflector / Internal Colour
  • Reflector/Internal: White
  • Reflector/Internal: Black
  • Reflector/Internal: Custom Colour
• Correlated Colour Temperature (CCT)
  • CCT: 2700K
  • CCT: 3000K
  • CCT: 3500K
  • CCT: 4000K
  • CCT: 5000K
  • CCT: 6000K
  • CCT: 6700K
• Mounting Options
  • Recessed
• Lens Options
  • Honeycomb
  • Frosted Centre
• Lamp Life
  • Lamp Life: L80 B10 @ 4K, CRI80
