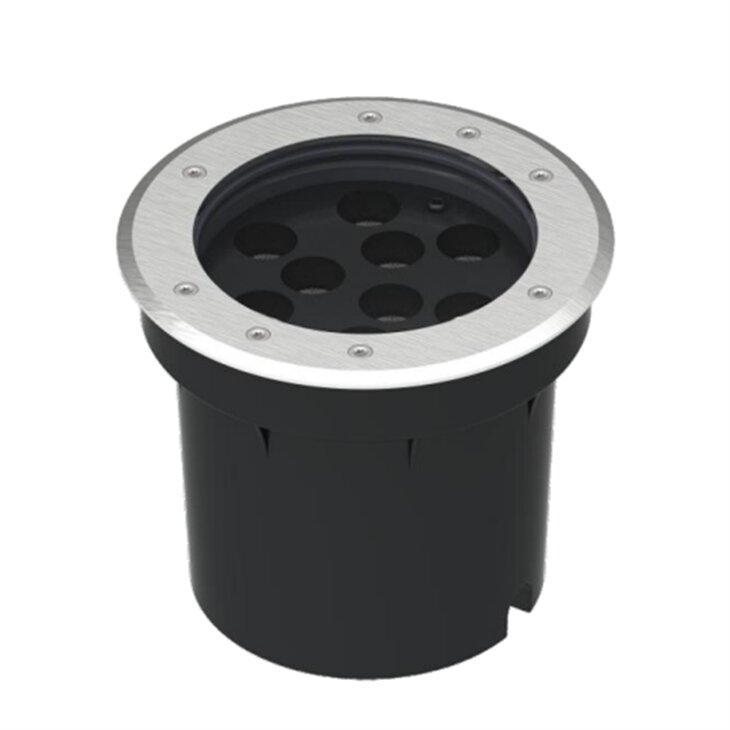

Bayles Series - 160

• Wattages
  • TBC
  • 18W
• Efficacy
  • 80lm/W
• Correlated Colour Index (CRI)
  • >80
  • >90
  • TBC
• MacAdam Ellipse (SDCM)
  • <5
  • <3
• IP Rating
  • 67
  • TBC
• IK Rating
  • 09
• Voltage
  • AC220-240V
• Light Source & Brand
  • LED: CREE SMD
• Size - Diameter
  • Diameter: 160mmØ
• Size - Height
  • Height: 113mmH
• Mounting Options
  • TBC
  • Recessed
• Beam Angle
  • TBC
  • Beam Angle: 15°
  • Beam Angle: 30°
  • Beam Angle: 45°
  • Beam Angle: 60°
  • Beam Angle: 10° x 60°
  • Beam Angle: 20° x 45°
• Dimming Options
  • Non-Dimmable
  • Triac Dimmable
  • TBC
  • 0-10V Dimmable
  • DALI Dimmable
• Correlated Colour Temperature (CCT)
  • CCT: 2700K
  • CCT: 3000K
  • CCT: 4000K
  • CCT: 5000K
  • CCT: 6000K
  • CCT: 6500K
  • CCT: RGB
  • CCT: RGBW
• Accessories
  • DMX Controls
• Lens Options
  • TBC
  • PMMA + Anti-UV Lens
• Material of Housing
  • Housing Material: Aluminium
• Operating Temperature
  • Operating Temperature: -20°C to +45°C
• Lifetime
  • Reported L80 @ 85° >90,700 Hrs - As outlined within IESNA Standards, Projected Lifetime can be up to 6 x the reported lifetimes

Please select all of the options
