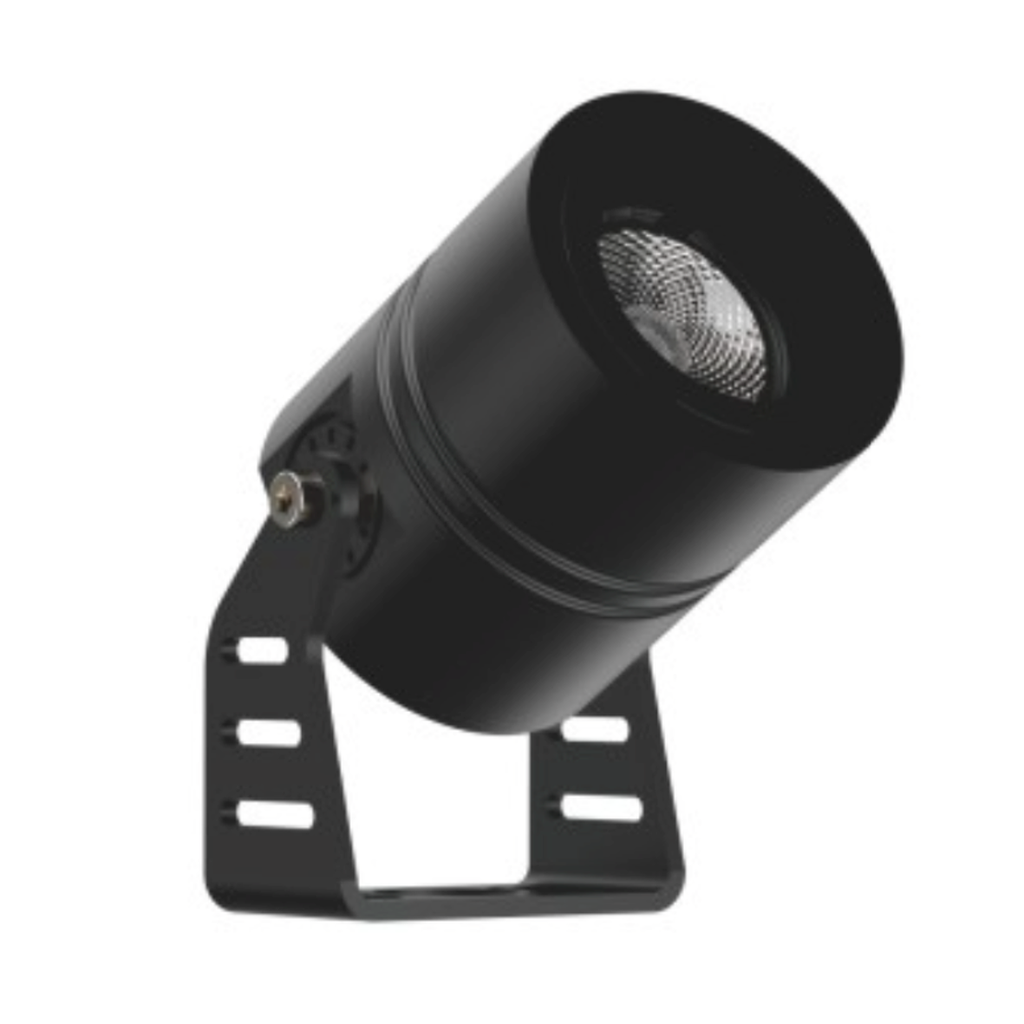

Simpson Series - 42 - SMD

• Wattages
  • 2.5
  • TBC
• Efficacy
  • 80lm/W
• Correlated Colour Index (CRI)
  • >80
  • >90
  • TBC
• MacAdam Ellipse (SDCM)
  • <3
• IP Rating
  • 66
  • TBC
• IK Rating
  • 07
• Voltage
  • DC 24V
• Light Source & Brand
  • LED: CREE SMD
• Driver
  • Driver: Without Driver

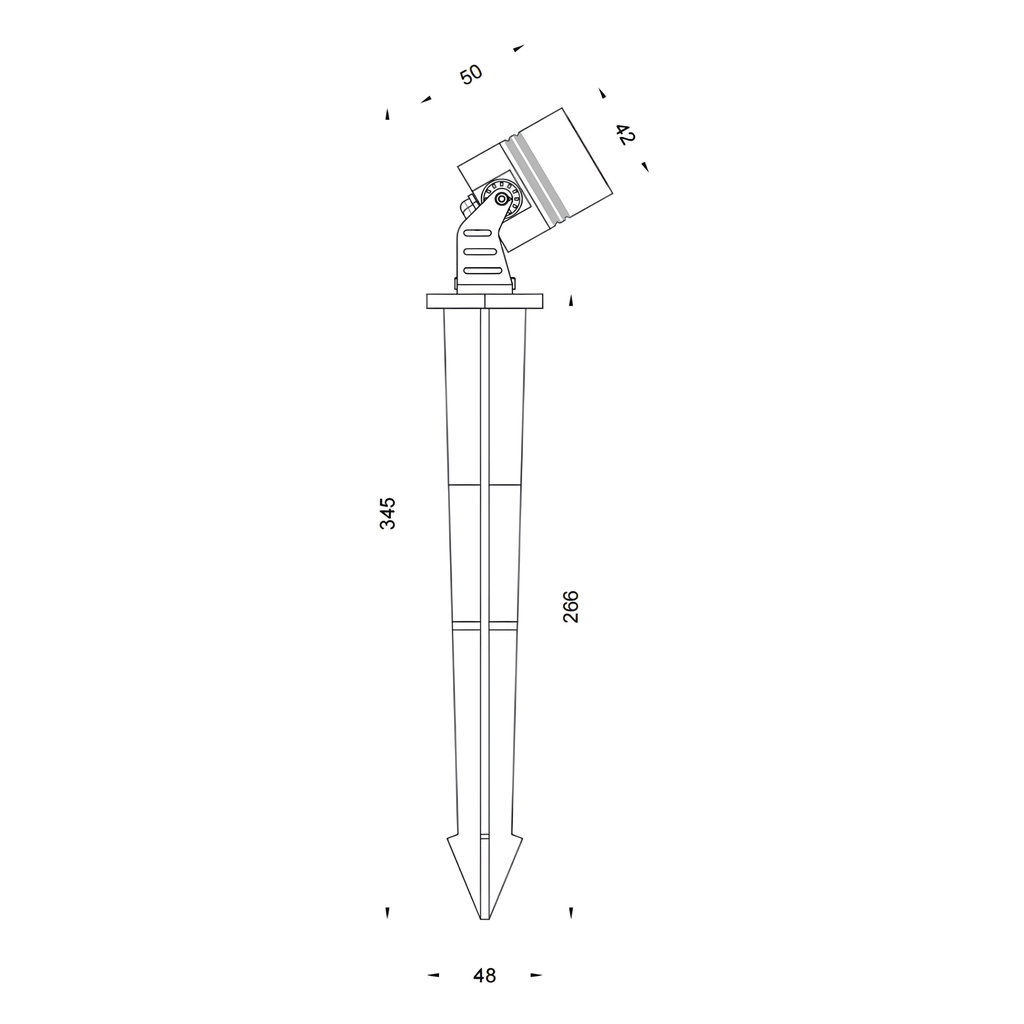

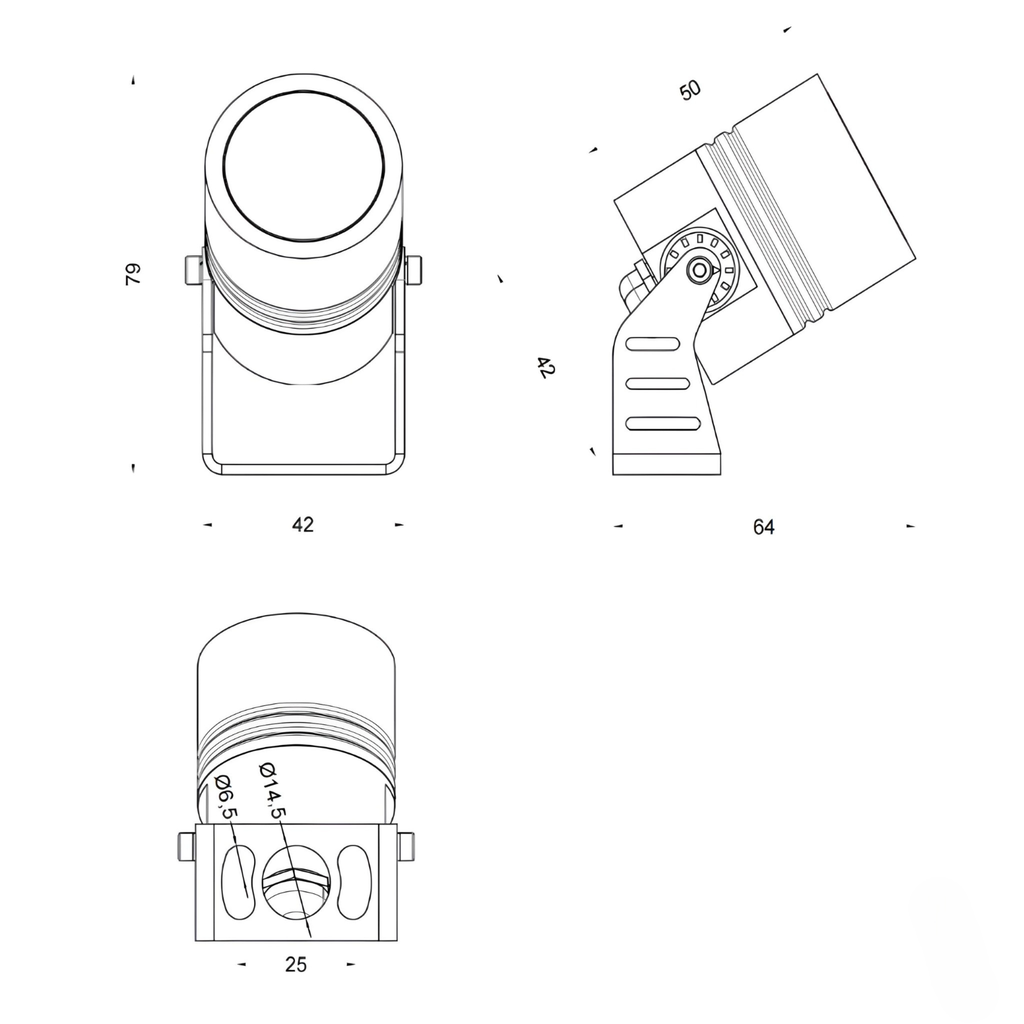

• Size - Diameter
  • Diameter: 42mmØ
• Size - Length
  • Length: 50mmL
• Size - Height
  • Height: 79mmH
• Weight
  • Weight: 0.4kg
• Tilt
  • Tilt: 180°
• Beam Angle
  • TBC
  • Beam Angle: 5°
  • Beam Angle: 8°
  • Beam Angle: 10°
  • Beam Angle: 12°
  • Beam Angle: 20°
  • Beam Angle: 25°
  • Beam Angle: 30°
  • Beam Angle: 40°
  • Beam Angle: 45°
  • Beam Angle: 60°
• Dimming Options
  • Non-Dimmable
  • Triac Dimmable
  • TBC
  • 0-10V Dimmable
  • DALI Dimmable
• Material of Housing
  • Housing Material: Aluminum Alloy
• Material of Optics- Glare control
  • Optics Material: Tempered Glass Diffuser
• Operating Temperature
  • Operating Temperature: -20°C to +40°C
• Trim / Outer Colour
  • Trim/Outer: White
  • Trim/Outer: Black
  • Trim/Outer: Dark Grey
• Correlated Colour Temperature (CCT)
  • CCT: 2200K
  • CCT: 2700K
  • CCT: 3000K
  • CCT: 3500K
  • CCT: 4000K
  • CCT: 5000K
  • CCT: 5700K
  • CCT: 6500K
• Mounting Options
  • Surface Mounted
  • TBC

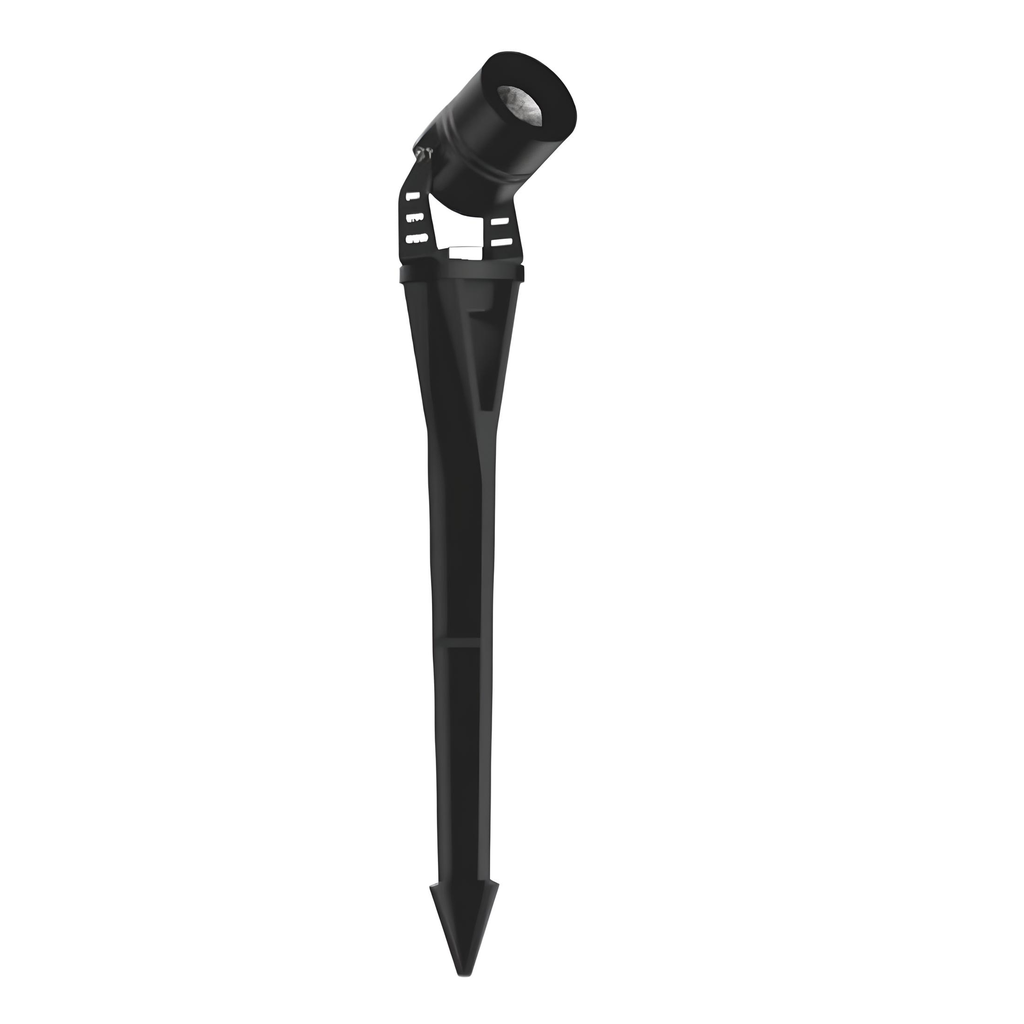

  • Spike Mounted
• Lens Options
  • TBC
  • Honeycomb Lourve
• Accessories

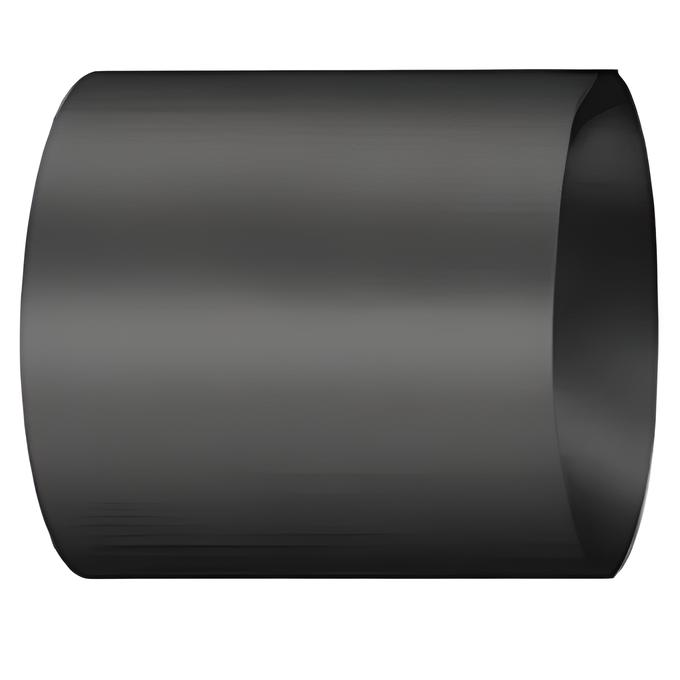

  • Cylindrical Hood

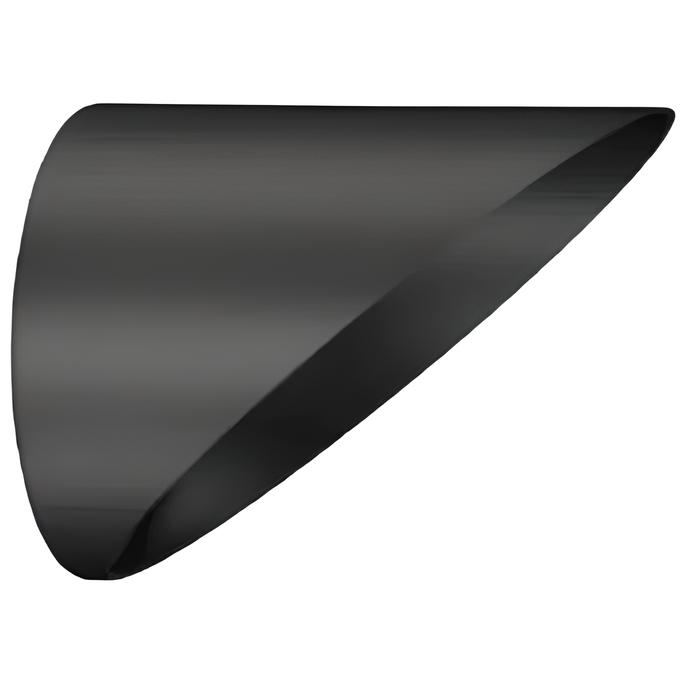

  • Cylindrical Hood 45°
• Lifetime
  • Reported L80 @ 85° >90,700 Hrs - As outlined within IESNA Standards, Projected Lifetime can be up to 6 x the reported lifetimes

Please select all of the options
